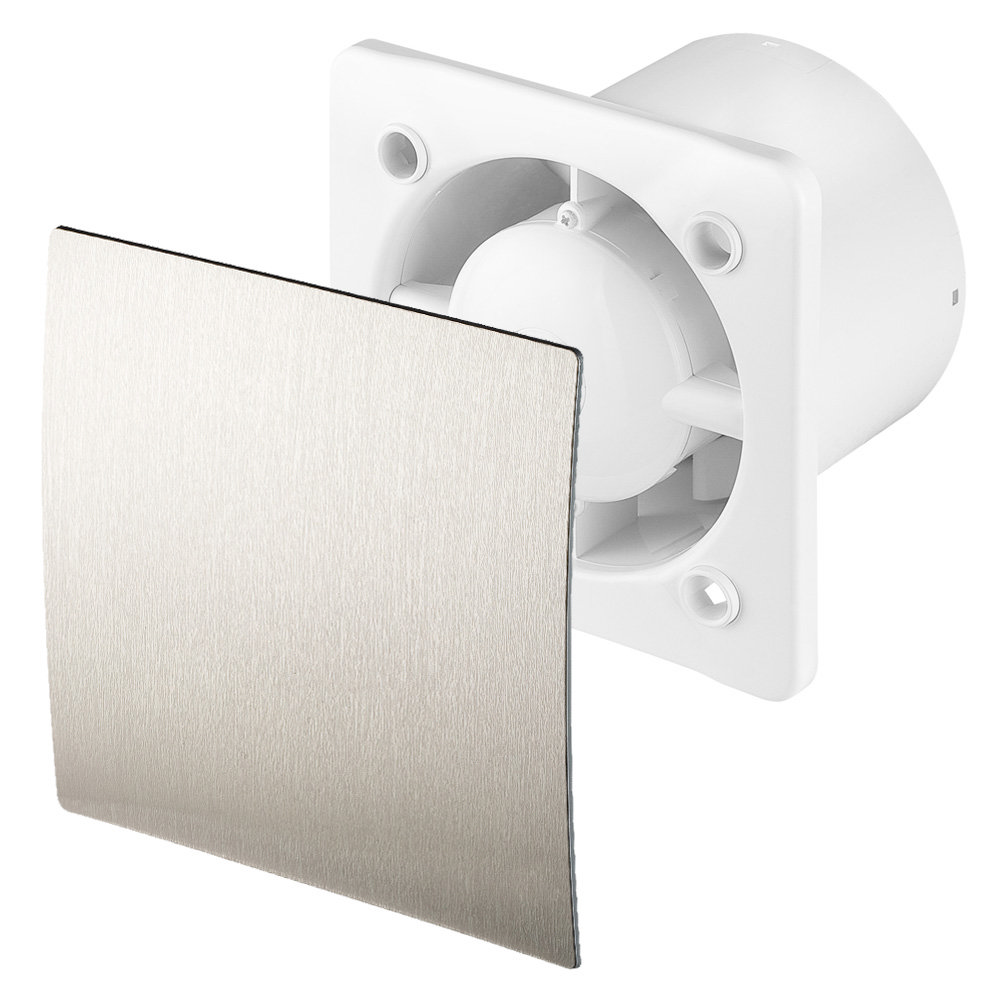

Arezzo 100mm Silent Extractor Fan with Humidistat — Silver

Product InformationArezzo 100mm Silent Extractor Fan — Humidistat — SilverA compact, quiet bathroom extractor with a stylish silver curved front panel. The Arezzo uses a built‑in humidity sensor and timer to remove excess moisture automatically or can be used with a manual switch. Suitable for wall, ceiling or panel installation.Key featuresDecorative silver curved front panel (square shape)Ultra-quiet operation — only 26 dBHumidity sensor (operates between 40% and 90% RH) plus adjustable timerAutomatic or manual start modesABS plastic housing with ball bearings for long lifeIPX4 rated — safe for bathroom useCompatible with a non‑return valve (ZZ)Maximum operating temperature: 40°CConforms to CE standards2‑year guaranteeHow it worksAutomatic start: the fan turns on when room humidity exceeds the level set on the H‑potentiometer and turns off after the delay set on the T‑potentiometer once humidity falls below that level.Manual start: the fan is switched on by a building/fan switch (not included). When the switch is turned off, the fan will continue running for the T‑potentiometer delay unless humidity is still above the H‑potentiometer threshold. The humidity detection system takes priority.Technical specificationsFan housing size: 130 × 130 × 88 mmFront panel size: 160 × 160 × 30 mmHole (duct) diameter: 100 mmFront panel colour: Silver (curved, square)Silent operation: 26 dBAirflow: 75 m³/h (typical)Static pressure: 26 Pa (typical)Power consumption: 5 WMaterial: ABS plasticBearings: Ball bearingsProtection: IPX4 (splash resistant)Operating humidity detection range: 40%–90% RHInstallationMounts to wall, ceiling or panelSwitch for manual operation is not included and must be provided as part of the building electrical wiringCompatible with optional non‑return valve (ZZ) where requiredWhat’s included1 × 100 mm Silent Bathroom Fan Housing with Humidistat1 × Curved Silver Front PanelProduct images are for illustrative purposes and may differ from the actual product.
