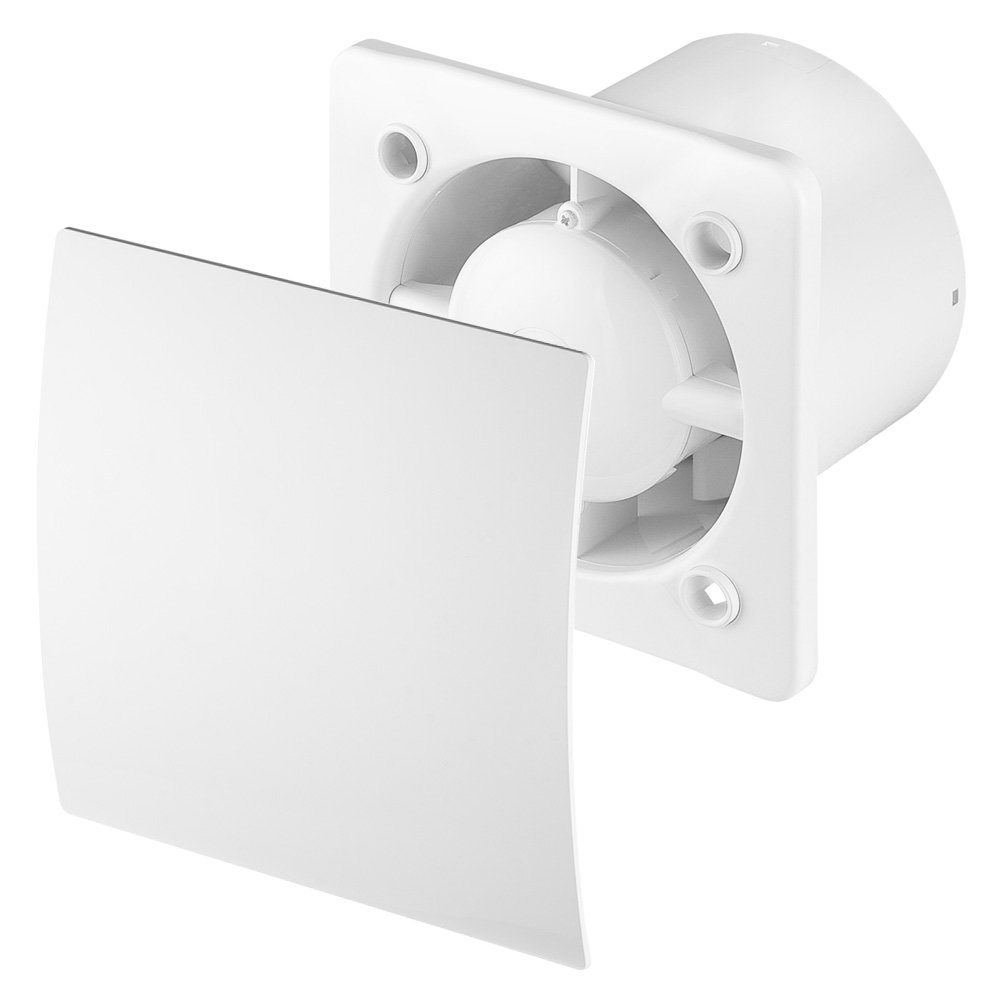

Arezzo 100mm Silent Extractor Fan with Humidistat — White

Product InformationArezzo 100mm Silent Extractor Fan — Humidistat — WhiteA compact, quiet bathroom extractor designed for wall or ceiling installation. The Arezzo uses a built-in humidity sensor and timer to control ventilation automatically, and includes a decorative white front panel for a neat finish.Key featuresSilent operation — only 26 dB100 mm hole diameter (suitable for standard ducting)Built-in humidity sensor (adjustable range 40%–90% RH)Adjustable run-on timer (T‑potentiometer)Automatic and manual start optionsSquare white front panel (decorative)ABS plastic construction with ball bearingsIPX4 rated — safe for bathroom useMax operating temperature: 40°CCan accept a non-return valve (ZZ)Low power: 5 WCE certifiedHow it worksAutomatic start: the fan turns on when humidity exceeds the level set on the H‑potentiometer. It switches off after the delay set on the T‑potentiometer once humidity falls below the set level.Manual start: the fan can be activated via a building switch (not supplied) or a dedicated fan switch. After the switch is turned off, the fan will continue to run for the delay set on the T‑potentiometer — provided the humidity is below the H‑potentiometer setting. The humidity detection system is the master control.Technical specificationsFan housing size: 130 × 130 × 88 mmFront panel size: 160 × 160 × 30 mmHole diameter: 100 mmFront panel colour: WhitePanel shape: SquareAir pressure: 26 Pa (manufacturer specification)Airflow: 75 (manufacturer specification)Wattage: 5 WSound level: 26 dBStandards: CEIncludes(1) 100 mm silent bathroom fan housing — humidistat(1) Curved front panel — whiteWarranty and notesGuarantee: 2 yearsProduct images are for illustrative purposes only and may differ from the actual product.If you’d like, I can format the technical specs as a table or produce installation/ wiring guidance.
